CNC Machining for Industrial Automation: Manifolds, Sensor Housings & Fixtures

Factory automation is built from a short list of mechanical heroes: pneumatic and hydraulic valve bodies, sensor housings, linear guides, actuator bodies, and endless custom brackets that tie it all together. Almost all of them are CNC machined — and when a production line stops because one valve body leaked or one sensor bracket drifted, the cost dwarfs the part price a hundred times over.

Renjiu Machinery manufactures machined components for automation OEMs and system integrators. Here is what to specify, and what to expect from a capable supplier.

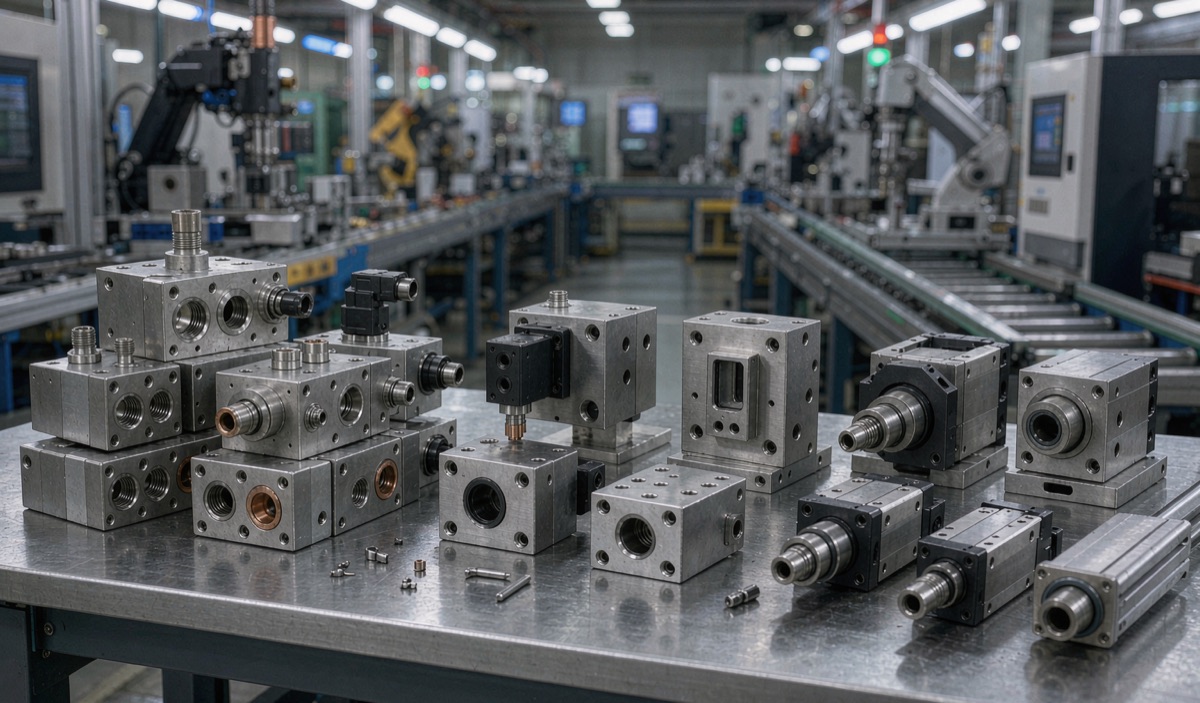

The Automation Parts Portfolio

Component Family	Examples	Common Materials	Failure Mode to Prevent
Fluid power	Valve bodies, manifold blocks, cylinder caps	Aluminum 6061, brass, 316L	Internal leakage, porosity
Sensing	Sensor housings, mounts, brackets	Aluminum, stainless 304/316	Vibration loosening, corrosion
Linear motion	Carriage plates, rail supports, ball nut housings	Steel, aluminum 7075	Lost motion, misalignment
Actuation	Gearboxes bodies, cam followers, levers	42CrMo4, 7075	Backlash growth, wear
Custom fixturing	Pallets, clamps, robot end-of-arm tooling	Aluminum 5083/6061	Repeatability of location

Manifold Blocks: The Machining Deep Dive

Hydraulic and pneumatic manifolds are the most machining-intensive parts in automation: dozens of intersecting drilled and threaded passages, sealed by O-rings on precisely finished faces.

What goes wrong with cheap manifolds

• Cross-hole breakout burrs that break loose and jam valves
• Porosity weeping air or oil under pressure
• O-ring groove finish too rough, cutting seals during assembly

How we prevent them

• Cross-hole deburring as a documented process step
• Pressure testing of cast-blank manifolds before machining starts
• O-ring grooves machined to ISO 3601 with Ra ≤1.6 μm and chamfered lead-ins

Our multi-axis machining service handles manifolds up to 1,200 mm with drilled cross-passages on 4th/5th axis in single setups.

Materials: Aluminum by Default, Steel Where It Counts

Anodized 6061 covers 70% of automation hardware. But two upgrades are common:

• 7075 for structural brackets and linear motion parts where deflection is the enemy
• 316L stainless for washdown (food, pharma) and corrosive atmospheres — note stainless changes the finishing logic entirely; see our finishing guide for the aluminum cases

The full alloy list with stock sizes is on our materials page.

Tolerances and Fit Philosophy

• Mounting hole patterns: ±0.1 mm — save the money
• Locating features (dowels, zero-point interfaces): ±0.02 mm, positional ∅0.05
• Cylinder bores and ball nut seats: ±0.01–0.02 mm with specified cylindricity
• O-ring grooves: to standard, not to feel

A good drawing distinguishes locating vs clamping features; a good supplier asks when it doesn't. If you need a refresher on ISO 2768, read our aluminum tolerance guide.

Speed and Lifecycle Support

Automation projects have brutal timelines: line acceptance dates don't move. Renjiu supports this reality:

• Prototype manifolds and brackets in 3–7 working days
• Stocked semi-finished blanks for repeat manifold part numbers
• Spare-part batches shipped with full inspection reports for maintenance teams

For high-volume actuator and sensor bodies, we also evaluate die casting or injection molding transitions — machined-critical-face hybrid designs often cut unit cost 30–50% at volume without sacrificing function.

Request a Manifold or Bracket Quote

Washdown and Corrosive Environments: Design for the Hose, Not the Brochure

Food, pharma and chemical automation destroy hardware that looks fine in the catalogue. Design rules that survive:

Material choices by environment

• 316L stainless for direct washdown zones — polished welds blended, no crevices
• 6061 with thick hard anodize for splash zones, with drainage gaps so puddles don't sit in pockets
• No mixed galvanic couples (aluminum bolted to stainless in a wet zone corrodes the aluminum predictably)

Geometry that drains

Horizontal shelves collect cleaning chemicals. Sloped surfaces, chamfered pockets and open bracket profiles let equipment dry — machined chamfers here are cheaper than replacing seized adjusters.

Fastener strategy

Stainless fasteners with anti-galling compound, or machined-in threads in the correct parent material with documented torque specs.

Frequently Asked Questions

Can you pressure-test manifolds before shipment?

Yes — pneumatic manifolds at working pressure with soap-solution leak check; hydraulic manifolds to specified test pressure with hold-time records. Reports ship with the batch.

What's the largest manifold you machine?

Up to ~1,200 mm length on our 4/5-axis centres, with dozens of cross-drilled circuits in single setups to keep circuit-to-circuit geometry true.

Do you produce matching valve bodies for third-party valve brands?

Routinely — send the valve interface drawing or sample; we verify Cc/Cv-relevant geometry and seal faces against the standard.

Can you hold zero-point fixturing interfaces (e.g., 104 mm systems)?

Yes, locating bore and flatness specs for common zero-point clamping systems are standard work for our fixtures team.

How do you handle obsolescence — a part we need again after 3 years?

Process sheets and fixtures are retained for years, and we confirm re-run feasibility before you commit to your own redesign.
