Quality Control & Inspection in CNC Machining: Our Complete Workflow

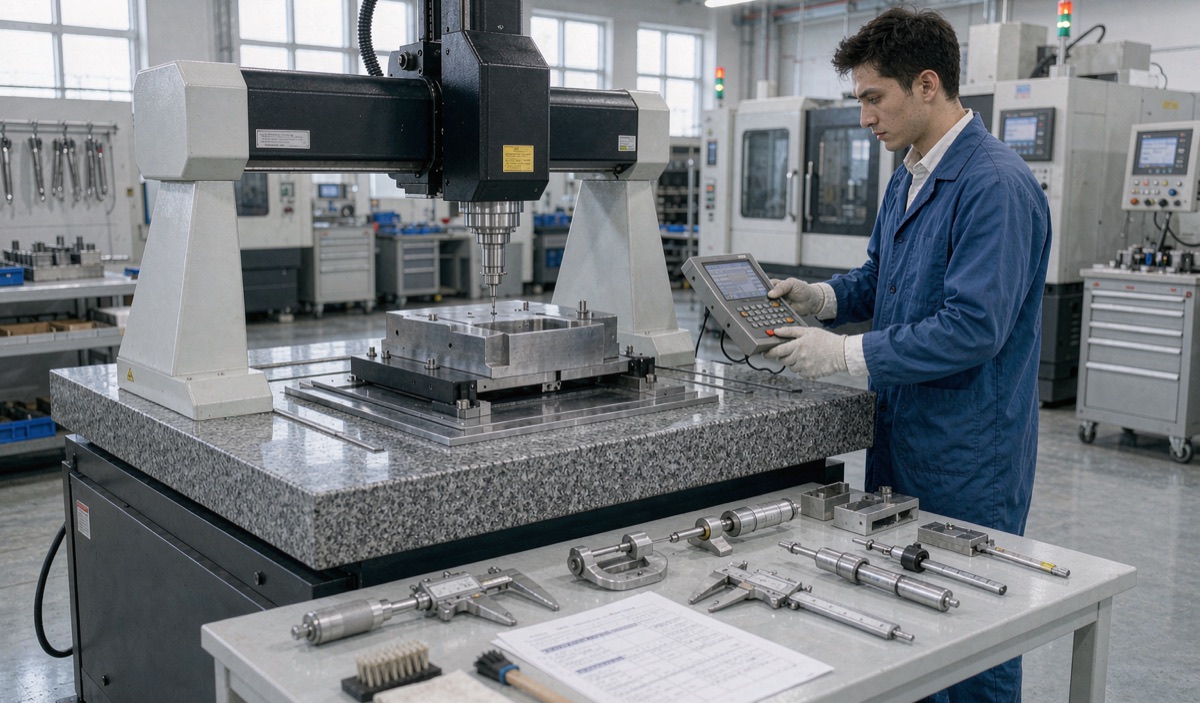

Quality control inspection of CNC machined parts with CMM, micrometers and inspection report

Anyone can promise "high quality". The question that separates a real CNC machining partner from a trading office with a website is: how do you know the parts in the box match the drawing? This article walks through the quality control and inspection workflow we run at Renjiu Machinery for every project — from first article to serial shipment — so you know exactly what documentation and checks stand behind each delivery.

Quality Starts Before the First Chip Is Cut

Drawing review

Every order begins with a structured review of the drawing: critical dimensions, datum logic, tolerance feasibility, material callout, surface treatment and packaging requirements. Ambiguities are resolved in writing before production — not argued about after inspection.

Material verification

Raw material enters with mill certificates. We verify heat numbers against certificates and, for alloys where mix-ups are common (6061 vs 6063, 304 vs 201), perform spectrographic checks. The certificate chain continues to your documentation package.

Process sheet and fixtures

Each part number gets a process sheet: operation sequence, tooling, inspection checkpoints. Dedicated fixtures are designed so that locating features match the drawing datums — measurement and machining share the same reference logic.

First Article Inspection (FAI)

Before any batch runs, the first part receives a full-layout inspection: every dimension on the drawing measured and recorded, not just sampled.

CMM for dimensional and positional tolerances (0.001 mm resolution)
Height gauges, micrometers, bore gauges for regular features
Surface roughness tester for finish callouts (Ra 0.2–3.2 μm range)
Thread gauges (go/no-go) for all threaded features

The FAI report is issued in English, with actual values per drawing characteristic, and kept on file for the life of the part number.

In-Process Control

Final inspection alone is quality theatre. What matters is control during the run:

Checkpoint	Method	Frequency
Setup verification	First-piece full check vs process sheet	Every setup, every machine
SPC-critical features	Sample measurement & trend chart	Every 10–20 pcs on key dims
Tool wear monitoring	Scheduled tool change + spot checks	Per tool life sheet
Surface treatment batches	Coupons with each anodizing/plating batch	Every treatment batch

When a dimension drifts, the operator stops, adjusts, and re-verifies — and any suspect parts are segregated, never blended back into the batch.

Final Inspection and Documentation

Every shipment includes at minimum:

Dimensional inspection report — sampled per AQL or 100% on critical characteristics, as agreed per order
Material certificate linked to the batch
Surface treatment certificate (thickness, salt-spray hours where specified)
Photos of actual parts before packing, on request

For customers in regulated industries — see our guides for medical and aerospace — we extend this to full-traceability packages with heat-number mapping down to individual parts.

The Instruments Behind the Numbers

Coordinate measuring machine (CMM) for prismatic and 3D tolerances
Optical comparator for small profile features
Profilometer for surface roughness
Hardness tester (HRC/HB) for heat-treated parts
Spectrometer for material grade verification
Calibrated gauges under a scheduled calibration programme — because an uncalibrated micrometer is decoration

Common Quality Failures — and How to Spot Them in a New Supplier

1. The invisible certificate

Ask for a sample FAI report before ordering. If it contains pass/fail ticks instead of actual measured values, walk away.

2. The mystery alloy

Ask how they distinguish 6061 from 6063. "The supplier says so" is not an answer; a spectrometer reading is.

3. The selective report

A report listing only the dimensions that passed. Real reports record what was measured, including out-of-tolerance findings and dispositions.

4. Treatment amnesia

Anodizing thickness and salt-spray performance are measurable. If a supplier can't state film thickness per batch, their "anodized" is a coin flip.

Continuous Improvement, Not Just Compliance

Every non-conformance, however small, enters our corrective action log: root cause, fix, and verification. Repeat customers get access to this history per part number — useful for their own audits and for improving designs. Combined with DFM feedback (see how we approach this in automotive and robotics programmes), quality becomes a compounding asset rather than a checkbox.

Audit Us

How to Read an Inspection Report Like an Auditor

A dimensional report can be honest, partial, or decorated. Here's how to tell in two minutes:

1. Check the measurement method column

Each characteristic should state the instrument (CMM, mic, gauge) — and the resolution must be at least 10× finer than the tolerance. A ±0.01 mm bore checked with a 0.01 mm-resolution caliper is a guess.

2. Look for actual values, not "OK"

Actual values reveal process health: a dimension reported as 10.00/10.00/10.00 across five parts was typed, not measured. Real data scatters.

3. Verify datum logic

Measurements must reference the drawing's datums in order. A report measuring hole positions from "part edge" has re-invented the design intent — and probably passed bad parts.

4. Count the characteristics

Balloon every drawing dimension and match against the report rows. Missing rows are where trouble hides; respectable suppliers report 100% of characteristics or explain sampling logic per row.

5. Check the traceability block

Report should carry: part number/revision, order number, material batch, instrument calibration IDs, inspector and date. If the calibration ID is missing, the numbers have no foundation.

Frequently Asked Questions

Can we send our own inspector to witness final inspection?

Yes, by appointment — remote video witnessing works well for overseas customers and costs a scheduling slot, not a fortune.

Do you support customer-specific gauging?

We build and certify go/no-go and function gauges per your standard for series runs; the gauge certification is part of the FAI package.

What happens when a non-conformance is found before shipment?

You get a notification with the finding, root cause, disposition options (use-as-is with data, rework, scrap) and corrective action — before anything ships. We don't bury deviations in the box.

Are your instruments calibrated to a traceable standard?

Yes, scheduled calibration with traceable certificates; calibration status is marked on each instrument and referenced in reports.

Can you match a competitor part by reverse engineering?

We can measure and reverse-engineer samples, but we'll ask about IP ownership first — drawing clarity beats guessing, and respecting your supplier's own IP sets the right tone.
