Why Machining Titanium Costs Five Times Aluminium (and When It's Worth It)

Every machining buyer eventually sends out an RFQ for a part that has existed in their head as an aluminium part, and comes back with a titanium quote that is five times higher. Not 20% higher, not double — five times. The reaction is usually suspicion: the supplier is padding the quote, or titanium is a luxury brand name, or the machine shop does not want the job.

None of those are the reason. Titanium is genuinely one of the most expensive common alloys to put through a CNC machine, and the cost gap is arithmetic, not markup. This article walks through where the multiplier actually comes from, then puts a real bracket — the same geometry, in 6061-T6 and in Ti-6Al-4V — through a line-item cost comparison so you can see exactly which line inflates and by how much. If you have ever argued with a titanium quote, or you are deciding whether to spec titanium at all, the numbers below are the argument.

The Five Drivers Behind a Titanium Quote

Ask five machinists why titanium costs more and you will get five overlapping answers. They collapse into five measurable drivers, ranked roughly by how much they add to a typical part:

1. Cutting speed. Aluminium tolerates cutting speeds of 300–600 m/min; Ti-6Al-4V lives at 45–60 m/min. Heat is the enemy — titanium conducts heat poorly, so almost all of the cutting energy stays in the tool tip instead of flowing into the chip. Push the speed and the edge burns in minutes. That single physical fact sets the ceiling for everything downstream.

2. Cycle time. Slower speeds mean more time on the machine, but the multiplier is worse than the speed ratio alone suggests. Titanium work demands lower feed rates, lighter depths of cut, and more conservative engagement to control the spring-back that titanium's high strength-to-modulus ratio produces. In practice a part that cycles in 28 minutes in 6061 takes 90–110 minutes in Ti-6Al-4V — a 3.5–4× time multiplier, applied to the most expensive machine hours in the shop.

3. Tool consumption. A carbide end mill cutting 6061 can run a full shift on one edge. The same edge in titanium is spent in 15–25 minutes of in-cut time. Tool cost per part is not the price of an end mill divided by a day of work; it is several edges consumed for a single part. On complex parts, tooling can reach 10–15% of the titanium piece price — a line that barely exists on the aluminium version.

4. Material and scrap. Ti-6Al-4V bar costs $30–45 per kilogram versus $3.50–5 for 6061. Because titanium chips are not worth recycling to anything like the degree aluminium swarf is (recovered titanium chips sell at a fraction of wrought price, and require degreasing and certification to re-enter the supply chain), the buy-to-fly ratio hurts more. A bracket that finishes at 0.35 kg might consume 1.2 kg of aluminium or 1.05 kg of titanium — but the titanium billet line is still 8–10× the aluminium one, and most of it leaves as low-value chips.

5. Process discipline. Titanium does not forgive shortcuts. It needs rigid setups (chatter shows up instantly as burned edges), high-pressure coolant aimed at the cut, sharp tools replaced on schedule rather than when they squeal, and patient first-article inspection because a scrapped titanium blank is a $75 loss, not a $9 one. Shops that run titanium properly quote the discipline in; shops that don't quote the scrap rate in instead.

There is a sixth, quieter driver worth naming: programming time. A titanium cycle is written differently from an aluminium cycle — constant engagement paths, trochoidal entry moves, rest cycles for boring, and deliberate tool-load limits that a CAM programmer has to engineer rather than accept from defaults. For a one-off or a 10-piece run, that engineering effort is amortised over few parts, which is one more reason titanium prototypes look disproportionately expensive while titanium production parts converge closer to 4×. The pattern repeats across quotes: everything that scales with time in contact with the part scales with the titanium multiplier, and everything that scales with part count partially dilutes it.

Same Bracket, Two Quotes: The Actual Arithmetic

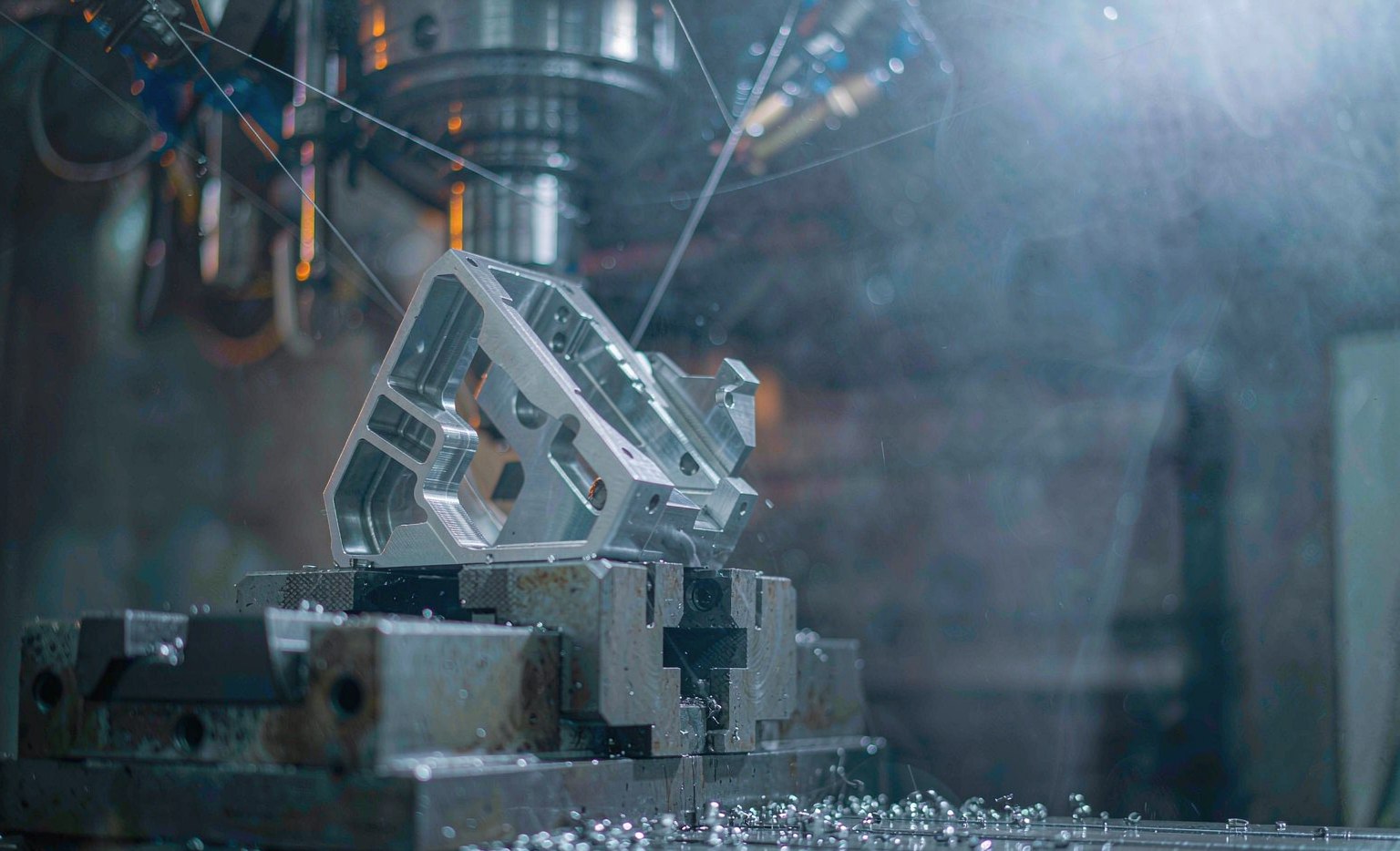

To make this concrete, take a representative part: an L-bracket, 120 × 80 × 12 mm, four bolt holes, one pocketed web, finished mass 0.35 kg, batch of 200. It is the kind of part every equipment builder makes, and it is honest about the comparison — nothing about it is unusually titanium-hostile or aluminium-friendly. Here is how the two quotes differ, line by line, at a typical China shop blended machine rate of $12/hour:

Cost line	6061-T6	Ti-6Al-4V	Why it moves
Raw billet (1.2 kg vs 1.05 kg)	$9	$75	Bar price $4/kg vs $38/kg; chips recover little value
Machine time	28 min → $5.60	95 min → $19.00	Cutting speed 500 vs 50 m/min, lighter engagement
Tooling consumed	$0.40	$6.80	4–5 tool edges spent per part at 15–25 min life each
Scrap allowance	$1.50	$9.00	~2% vs ~5% scrap rate on a 8× pricier blank
Finishing	$1.20 (Type II anodise)	$4.50 (passivate / hard coat)	Anodising is cheap; titanium finishing is slower chemistry
Inspection & admin	$0.80	$2.00	Traceability, material certs, tighter first-article loop
Piece price (200 pcs)	≈ $18.50	≈ $116	≈ 6.3× on this geometry

Read the table and the "5×" suddenly looks almost generous: on this bracket it is 6×. On a chunkier part with less machining per gram, the same comparison lands closer to 4×, because raw stock dominates and the machine time per kilo shrinks. On a thin, deeply pocketed part — heat sinks, sensor housings, structural ribs — it can exceed 7× because cycle time and scrap both climb while wall integrity gets harder. That is the honest range: 4×–7×, with 5× as the typical middle for lightly machined structural parts.

Two details in the table deserve attention. First, machine time is only 16% of the aluminium price but is dwarfed by material in absolute terms — titanium is one of the few alloys where the billet line alone can exceed the entire aluminium piece price. Second, tooling: $6.80 per part sounds small until you multiply it across a 2,000-piece program, where it buys a lot of the difference you see at the bottom of competing quotes. We break down this exact logic for any material in our guide to material cost vs machining cost.

Where the Multiplier Lands by Part Type

The 5× headline hides enormous spread. These are the realistic ranges we see across quoted work:

Part type	Titanium vs 6061 piece price	Main driver
Solid shafts, pins, spacers	3–4×	Mostly bar stock; short cycles
Brackets, blocks (the example above)	4–7×	Balanced material + cycle time
Thin-wall housings, deep pockets	6–8×	Deflection control, slow spring-pass cuts
Precision bore / tight-tolerance features	+15–25% on any of the above	Boring in Ti needs rest cycles and more inspection

If your part is in the first row, the titanium case is easier to argue than the headline suggests. If it is in the third, treat any titanium quote under 5× with the same suspicion you would treat an aluminium quote under material cost.

When Titanium Actually Earns Its Cost

There is a reason aerospace, medical and high-end industrial buyers pay the multiplier voluntarily:

• Specific strength at temperature. Ti-6Al-4V holds useful strength past 300 °C where 6061 loses more than half of its temper. Engine bays, exhaust-adjacent structures and downhole tools are the classic cases.
• Fatigue in aggressive cycles. Titanium's fatigue strength-to-weight beats every machinable aluminium alloy, which is why loaded brackets survive in titanium where aluminium versions crack at the fillet.
• Corrosion with zero coating. Titanium's oxide film is permanent; chloride, seawater and body fluids leave it untouched. No anodise to specify, no coating to scratch through, no galvanic surprises (as long as the assembly avoids aluminium contact in wet service).
• Galvanic and medical compatibility. Implants and surgical instruments use titanium not for marketing but because tissue tolerates it and autoclave cycles don't.

Where none of these apply, the honest recommendation is usually 7075-T651: at roughly 60–70% of the piece price of a simple titanium part, it delivers strength close to many steel grades at aluminium weight. Our guide on when 7075 is worth the price covers that trade-off, and the Grade 2 vs Grade 5 comparison shows that even inside titanium, grade choice moves cost by 20–40% — many parts specified in Grade 5 are over-specced and would pass in commercially pure Grade 2.

Seven Ways to Cut Titanium Cost Without Changing the Material

When the spec genuinely requires titanium, the quote is still negotiable — not the markup, the geometry:

1. Relax tolerances off the critical path. Every ±0.01 mm call-out in titanium adds rest cycles and inspection. Tolerance only the bores and datum features; let the rest ride ±0.1 mm.
2. Kill thin walls. Anything under 1.5 mm in titanium multiplies cycle time. Ribs at 2.5–3 mm are cheaper than a 1 mm wall plus a rework allowance.
3. Open the internal radii. Small corner radii force small tools, and small tools in titanium are where tool life goes to die. An 8 mm internal radius instead of 3 mm can cut 20% off cycle time on a pocketed part.
4. Start from near-net stock. For volumes above ~500 pieces, a preform or oversize plate cut to profile can pay for itself in avoided slotting time — the same fixture-amortisation logic as our setup cost breakdown.
5. Choose Grade 2 where loads allow. Commercially pure titanium machines measurably faster than 6Al-4V and costs less per kilo. For non-structural housings it is frequently the right call.
6. Combine features that need the same setup. A part that can be finished in two operations instead of four saves the full re-chucking time — a premium in titanium because every setup re-indicates on an expensive blank.
7. Buy the DFM pass before the PO. Most titanium over-spending we see is a 30-minute drawing conversation away from resolution. Our DFM checklist lists the specific features to question before you release titanium drawings for quote.

Want a quick sanity check on your own part? Put the geometry into our free CNC machining cost calculator — the material dropdown includes both alloys, so you can see the stock and cycle-time lines move separately rather than as one opaque number.

One last practical note on lead time. Titanium bar in common diameters is stocked by most mills, so a prototype batch does not wait on material; 5–12 working days from drawing to shipment holds for titanium the same as for aluminium. What does stretch schedules is finishing: hard anodising and passivation are quick, but exotic titanium coatings or NADCAP heat treatment add a week to ten days. If your program has a hard launch date, say so at RFQ — sequencing the finisher before the PO is signed is usually the difference between shipping on time and watching the calendar.

Frequently Asked Questions

Is titanium really 5× more expensive to machine than aluminium?

The full piece-price multiplier for lightly machined parts is typically 4×–7×, and 5× is a fair planning number. Material price alone is 8–10×, but it is partly offset where the part is heavy and the machining is light; deeply machined thin-wall parts go the other way and can exceed 7×.

Which titanium grade is cheapest to machine?

Commercially pure Grade 2 is the cheapest and the fastest cutting. Grade 5 (Ti-6Al-4V) costs more in bar and machines 20–30% slower; Grade 23 and 6Al-4V ELI add certification cost on top. Many housings specified in Grade 5 work fine in Grade 2 — check the load path before paying the difference.

Why can't shops just run titanium faster with better tools?

Heat is the limit, not the tool. Titanium's low thermal conductivity traps cutting heat at the edge, and higher speeds push edge temperatures past what carbide survives regardless of coating. High-pressure coolant and modern coatings have improved tool life by meaningful percentages — they have not changed the 45–60 m/min speed ceiling.

Is titanium harder to machine than stainless steel?

Different failure modes. 316L work-hardens and galls; titanium keeps its edge-temperature problem. In practice Ti-6Al-4V cycles roughly 1.5–2× slower than 316L with 3–5× higher tool consumption, so a titanium part prices above the same part in 316 — but below the popular myth of "unmachinable".

Can I mix materials — titanium where it counts, aluminium where it doesn't?

Yes, and it is often the smartest answer: a titanium load-bearing spine bolted to machined aluminium housings gets most of the performance at a fraction of the all-titanium cost. Design the interface for galvanic isolation (sealed joint or coating) and the combination works in wet service too. We build such hybrid assemblies regularly — send both drawings and we will quote them as one package.

Deciding between titanium, 7075 or 316L for a real part? Send your STEP or PDF drawing to Renjiu Machinery and we will return a line-item quotation within 24 hours — material, machine time and finishing priced separately, first-article CMM report included, MOQ 1 piece. Prototype orders ship in 5–12 days. Request your quote →
